Torque drive

Direktantrieb LTD

617649

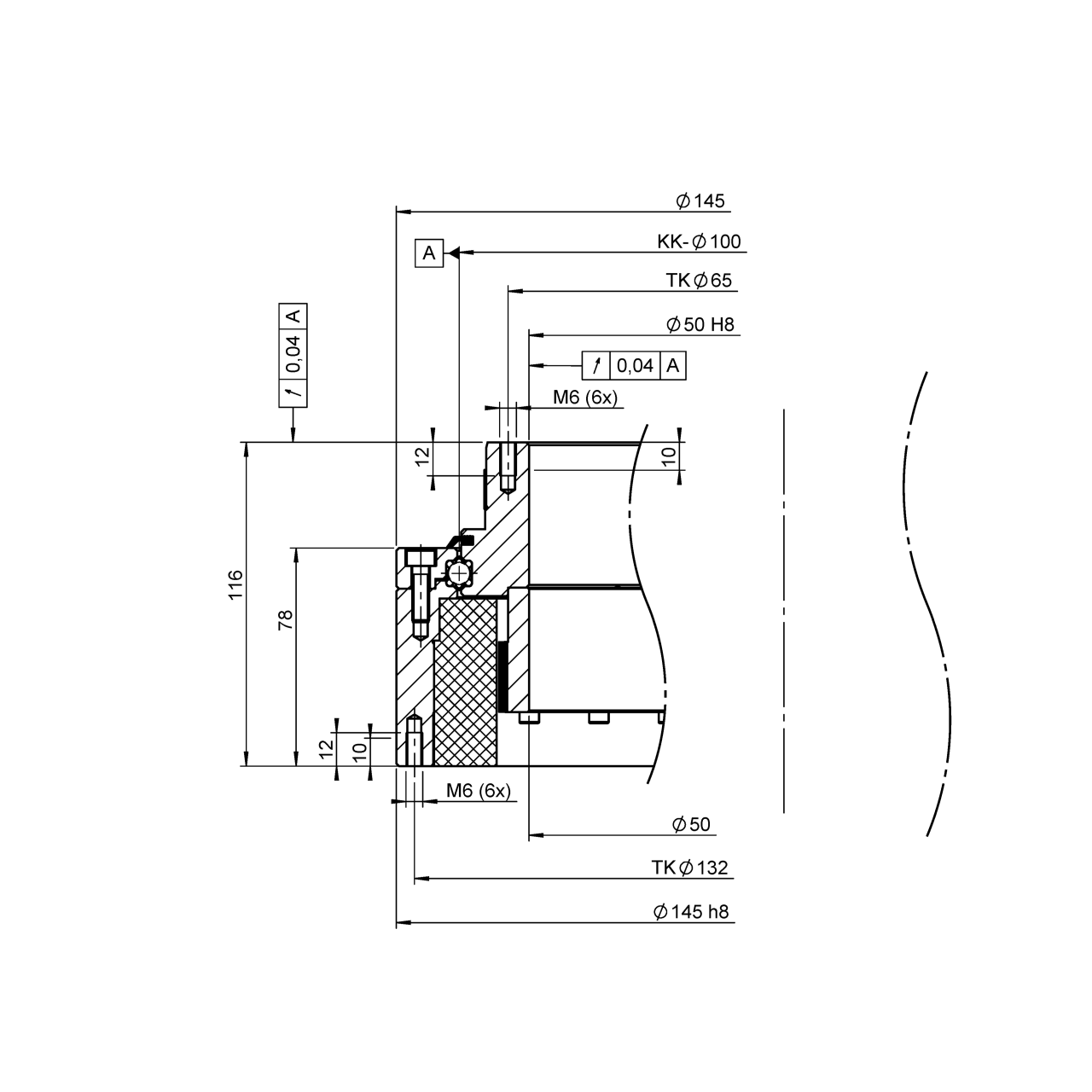

LTD-0100
Precio unitario: -,- EUR
Precio -,- EUR

Descripción

Bearing assemblies with direct drive are suitable for applications where high performance and low space requirements are important criteria. The integration of the drive into the bearing housing means that wear-prone assemblies for transmitting drive power, such as toothed belts, shafts or chains, can be dispensed with. This reduces the required drive energy and also benefits more accurate positioning.

Material

C45N (optionally aluminium)

Temperatura de funcionamiento

-10 °C to +80 °C
Precisión
Velocidad
Rango de diámetro
Precio

Mis contactos para este producto

Su contacto local

Franke Spain

Franke Rodamientos, S.L.
Ignacio García Rodríguez
Santa Hortensia, 48
28002, Madrid Tel.: +34 91 024 34 54 Móvil: +34 621 011 224

V-Card

Ventas internas

Friederike Kerlein

Tel.: +49 7361 920-187

V-Card

Asesoramiento técnico

Philipp Engert

Tel.: +49 7361 920-125

V-Card

Super compact and super individual: Franke direct drive with torque motor LTD

Basic-Data

  • Housing steel or aluminium
  • KKØ: 100 - 1800 mm
  • Incremental measuring systems
  • Absolute measuring systems

The advantages

  • Compact design
  • Large centre clearance
  • Free choice of components
  • Four standard sizes from stock
  • Customised solutions

Function & benefits:

kompakt

Compact

dynamisch

Dynamic

energieeffizient

Energy efficient

Compact design, large centre clearance

Franke bearing assemblies with integrated direct drive (torque motor) are characterized by high dynamics, maximum energy efficiency and a compact installation space combined with center-free design.

Franke slewing rings with torque motors are certified for use in clean rooms.

Wälzlager: Drehverbindung mit Direktantrieb Torque

Clean Room Certificate Standard

Clean Room Certificate Special Version

Durchmesser Direktantriebe Torque

Available diameters

Franke bearings with direct drive are available in diameters from 100 mm to 1,800 mm.

Whitepaper slewing ring with torque drive

Whitepaper Drehverbindung LTD mit Torque

Find out more about slewing rings with integrated torque motor and why it is superior to other drive types in almost every respect.

In future, dispense with components such as gearboxes and drive pinions.


Download Whitepaper Torque

Application examples

Computer tomographs
Rotary index table
Centrifuge
Beverage Bottling
Wheel hub with Torque-Motor
Thread testing of pipeline pipes

Further useful links

Kontakt: Beratung zu Wälzlagern und Linearsystemen
Let us advise you!

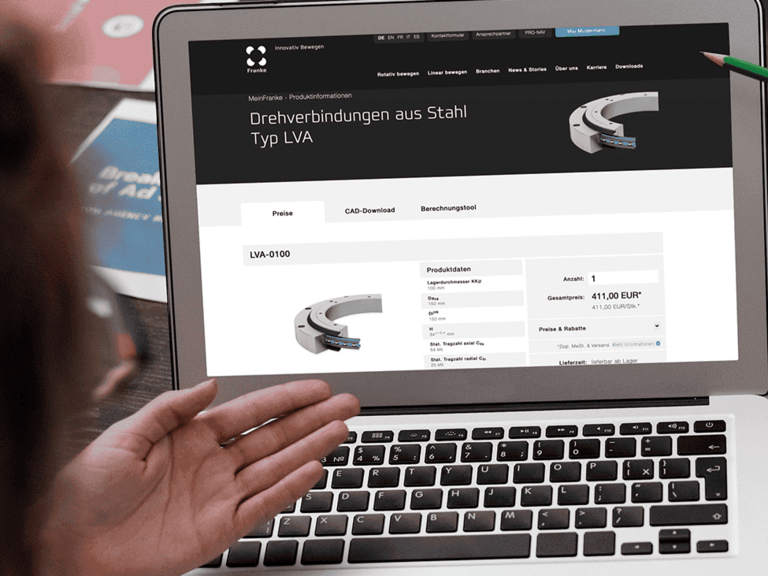

Franke Onlineshop für Wälzlager und Linearführungen
